SFC8000HP
P/N : SFC8000HP
1Gbps PoE 8-Ports + 1G/2.5Gbps SFP 2-Slots, S-RING, PoE 240W
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- 10/100/1000Mbps TP 8-Ports (802.3at PoE) + 100/1000/2.5Gbps SFP 2-Slots
- Web based Management, Telnet, SSH, SNMP, RMON, Syslog
- Auto Scan Manager Program (Scan, IP Setting)
- STP (IEEE 802.1D) / RSTP (IEEE802.1w) / MSTP (IEEE802.1Q)
- S-Ring(Recovery time < 10ms), Dual-Ring
- Carrier Ethernet (ERPS)
- PMC support (IGMP/MLD)
- Priority Queue Support (8 Queue per port)
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T / 100base-Tx and 100Base-Fx / 1000base-T / Gigabit Fiber IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP |
|---|---|
| RJ45 Ports | 10/100/1000Mbps TP 8-Ports Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (100m) |
| Fiber Ports | 100/1000/2.5 Gbps SFP Slot Multi mode : 50/125㎛, 62.5/125㎛, Single mode : 9/125㎛ |
| LED Indicators | Per unit : Power, Power Input1, Power Input2, Fault/Alarm, Ring Master 1000Mbps TP port : Speed (Y 1000Mbps, Yellow), Link/Activity (Green) Mini-GBIC : Link/Activity (Green) |
| Input/Output | 2 Input, 2 Output |
| Backplane | Switch Fabric 26Gbps |
| MAC Address | 8K MAC Address table |
| Installation Method | Wall or DIN-Rail Mount |
| Temperature | Operation : -40℃ ~ 80℃ Storage : -40℃ ~ 85℃ PoE full load : 40℃ ~ 50℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Power Supply | DC 54V, Polarity protection Circuit |
| Connection | 2 removable 2 contact terminal blocks |
| PoE | Max. PoE Output Power budget : 30W/Per port 240W for total PD's consumption (depending on power input) |
| Installation Method | DIN-Rail, Panel mounting |

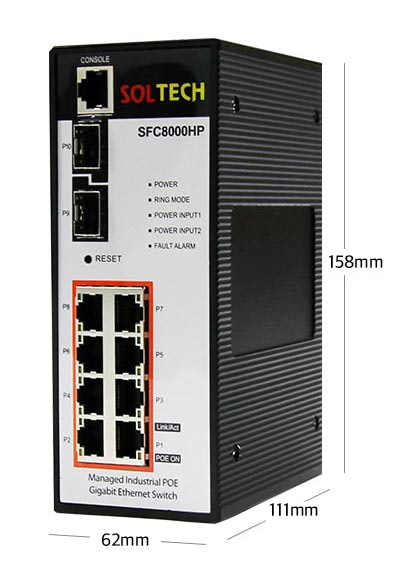

| Dimensions | 62mm (W) x 111mm (D) x 158mm (H), Aluminum Case, IP30 |
Description
Industrial Ethernet optical switch that can withstand extreme environments
Industrial fiber optic ethernet switch that can endure severe environment allowing to provide high speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient maintenance.

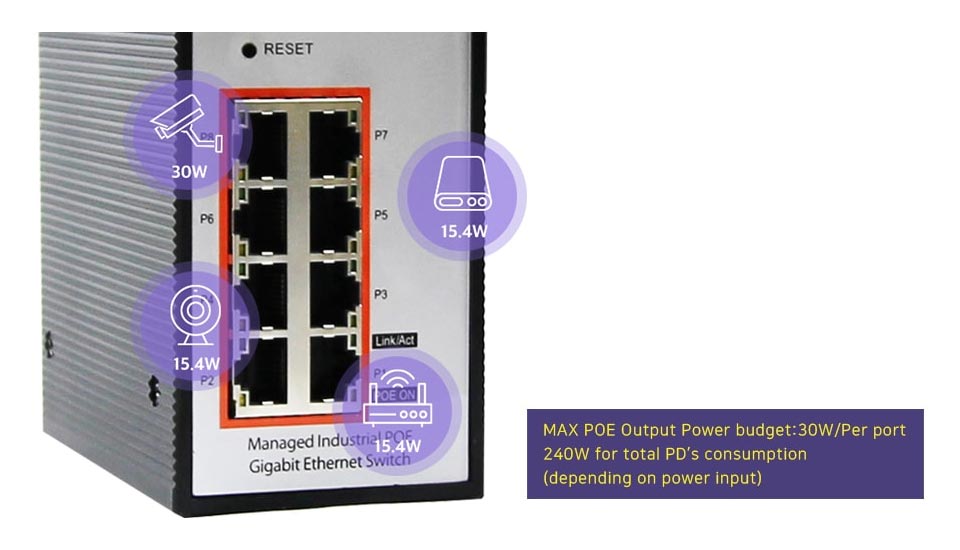

Industrial PoE switch that does not require a separate power line
Best power reliability for maximum 100 meter distance at industrial environment. By following IEEE 802.at PoE, 30W per port can be used for the 8 PoE port at the same time supporting maximum power budget of 240W.

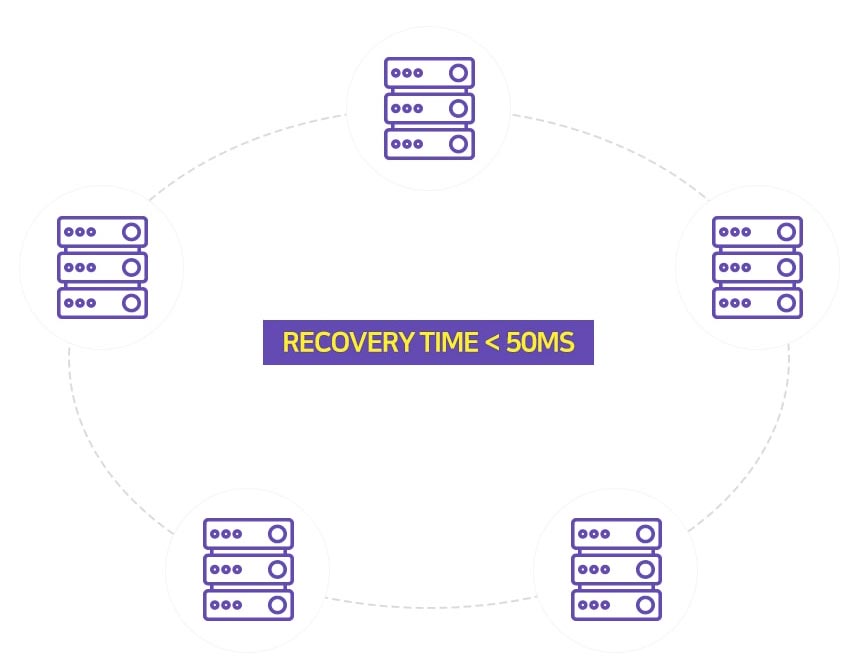

Fast recovery time S-RING protocol
With SOLTECH’s high technical background, we developed our own ring protocol called S-RING. S-RING allows optimized network with high speed recovery time during the failure, and the user convenience by easy setting.
Product Details

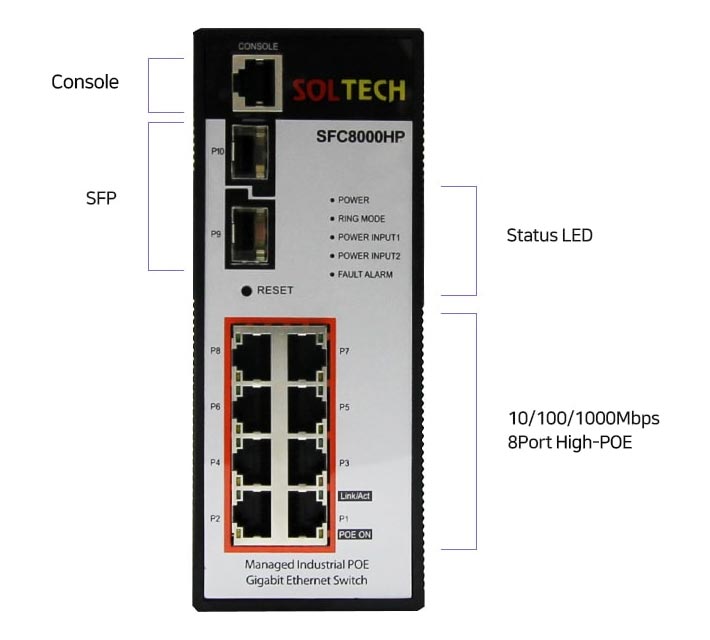

Construction
Construction
-

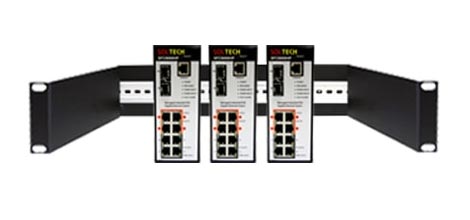

Din-rail mount

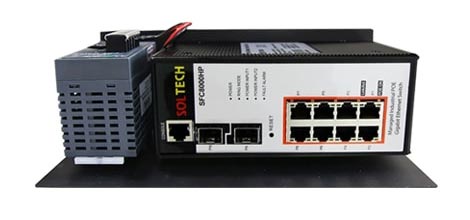

- SFC8000HPwith bracket
*Bracket is not included in the offer
Compare Product Lines
| SFC8000 | SFC8000HP | SFC8000G | SFC8000GHP | SFC8000BP | SFC8000S | |
|---|---|---|---|---|---|---|
| RJ45Port | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 4 TP(1Gbps) |
| PoE Port | - | 8 PoE(af/at) | - | 8 PoE(af/at) | - | - |
| SFP/SFP+ Port | 2 SFP(2.5Gbps) | 2 SFP(2.5Gbps) | 2 SFP(1Gbps) 2 SFP(2.5Gbps) |
2 SFP(1Gbps) 2 SFP(2.5Gbps) |
2 SFP(1Gbps) 2 SFP(2.5Gbps) |
2 SFP(2.5Gbps) |
| BYPASS | - | - | - | - |  |
- |
| Switch Fabric | 26Gbps | 26Gbps | 30Gbps | 30Gbps | 30Gbps | 18Gbps |
| Throughput | 19.3Mpps | 19.3Mpps | 22.3Mpps | 22.3Mpps | 22.3Mpps | 13.3Mpps |
| Memory(RAM) | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB |
| Flash Memory | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB |
| MAC Table | 8K | 8K | 8K | 8K | 8K | 8K |
| Jumbo Frame | 9600 | 9600 |
9600 |
9600 |
9600 |
9600 |
| Power Input | DC 12 ~ 56V | DC 48 ~ 56V | DC 12 ~ 56V | DC 48 ~ 56V | AC 100 ~ 240V | DC 12 ~ 56V |
| Power Consumption | AC 10.6W | AC 260W | AC 12.3W | AC 262W | AC 12.5W | AC 7.6W |
| PoE Capacity | - | PoE Max. 240W | - | PoE Max. 240W | - | - |
| Dual Power | |
|
|
|
|
|
| Installation Method | Wall or DIN-Rail Mount | Wall or DIN-Rail Mount | Wall Mount | Wall or DIN-Rail Mount | Rack Mount | Wall or DIN-Rail Mount |
| Dimension(WxDxH) | 62 x 111 x 158 (mm) | 62 x 111 x 158 (mm) | 151 x 154 x 44 (mm) | 62 x 111 x 158 (mm) | 266 x 184 x 88 (mm) | 41 x 106 x 112 (mm) |
| STP/RSTP/MSTP 802.1Q VLAN IEEE 802.1 IGMP Snooping |
|
|
|
|
|
|
| ERPS, S-RING | |
|
|
|
|
|
