Drop Cable Extension & Maintenance Solution
Using the kit that inserts the fiber into the cable jacket and ability to splice connectors directly to the optical cable, thist solution does not require a separate tray in the FDF for easier installation and maintenance.
then the answer is also
S O L M a t e

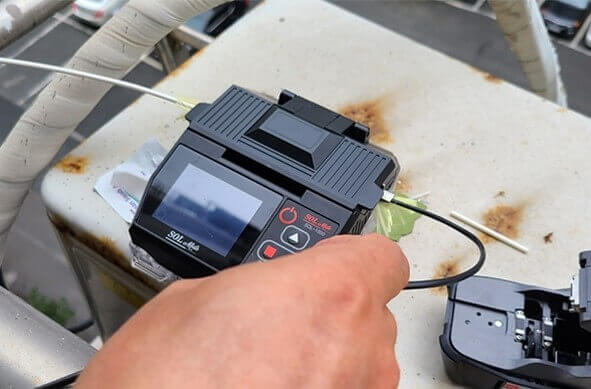

SOLMate Field Fusion Splicing Wing Sleeve Protection Connector
With high-quality performance using splicing technology you can use it for a long time without any maintenance. Considering it, it is evaluated that the cost effect is higher than that of fast connectors.
Industrial adhesive wing sleeve tape
No need of heating procedure
High endurance to humidity
Adaption to extreme temperature(-40~75℃)
|Connector Type||2mm, 3mm, 3mm Round, 2x3mm Rectangular|
|Insertion Loss||< 0.1 dB|
|Return Loss||> 60 dB|
|Operating Temperature||-40℃ to 75℃|
SOLMate Drop Cables that solves waterproof and tensile strength problems when expanding cables.
In general, connector adapters require frequent replacement because they have a high loss rate due to dustproof and waterproof vulnerabilities and frequent failures due to environmental factors.

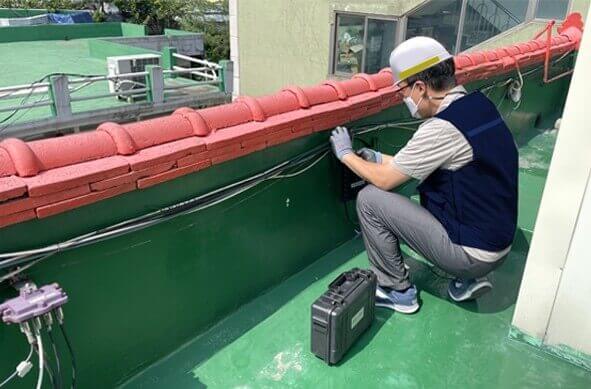

With the SOLMATE field fusion splicing tool and the indoor or outdoor closure solution, the drop cable can be simply recovered with 100N tensile force and with no waste of cable. Based on wing type adhesive sleeve method for protecting the spliced point, conventional sleeve heating process for fiber splicing is no longer necessary allowing fast and easy assembly.

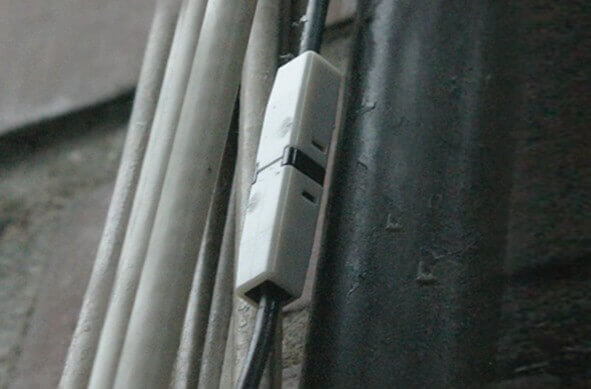

The outdoor closure is water and dust proof having IP65 grade and not only the quality of the network but these closures allow you to have neat cabling structure.

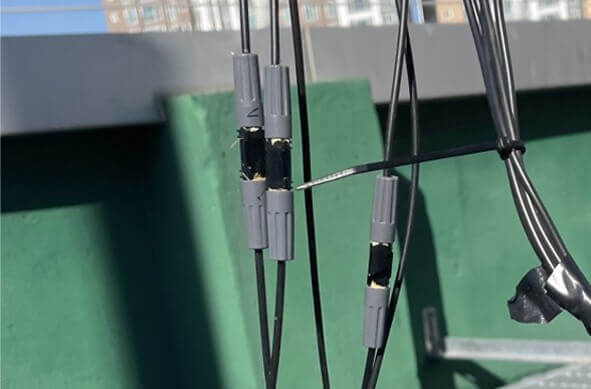

Improving the Beauty of Ugly Appearance due to the Messy Remaining Cables
Extension of the drop cable is also easy to achieve with low signal loss (0.1dB) using the closure instead of using the connector adapter which causes a lot of loss. By using the high-quality closure solution, it can enormously reduce the failure and aftersales service rate leading to customer satisfaction and costs reduction.
