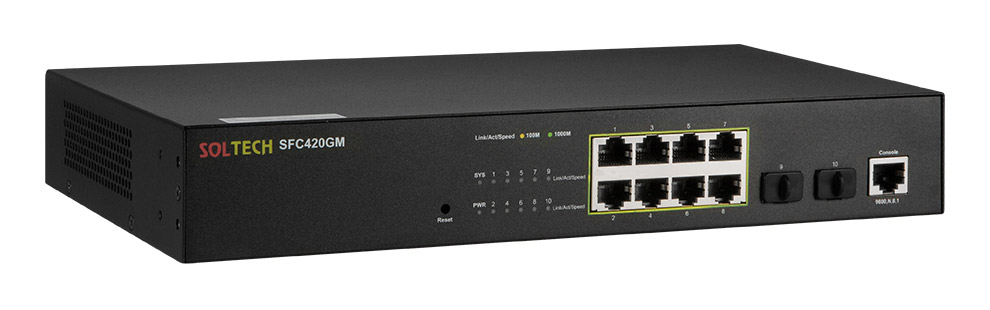

SFC420GM
P/N : SFC420GM
1Gbps TP 8-Port + 1Gbps SFP 2-Slots
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- TP 8-Port + SFP 2-Slot gigabit ethernet switch
- 20Gbps switch fabric, non-blocking switch architecture
- IEEE 802.3Q Tagged based/Port Based VLAN
- IGMP Snooping v1, v2, v3
- SNMP Trap (Cold start, Port Link, Power status)

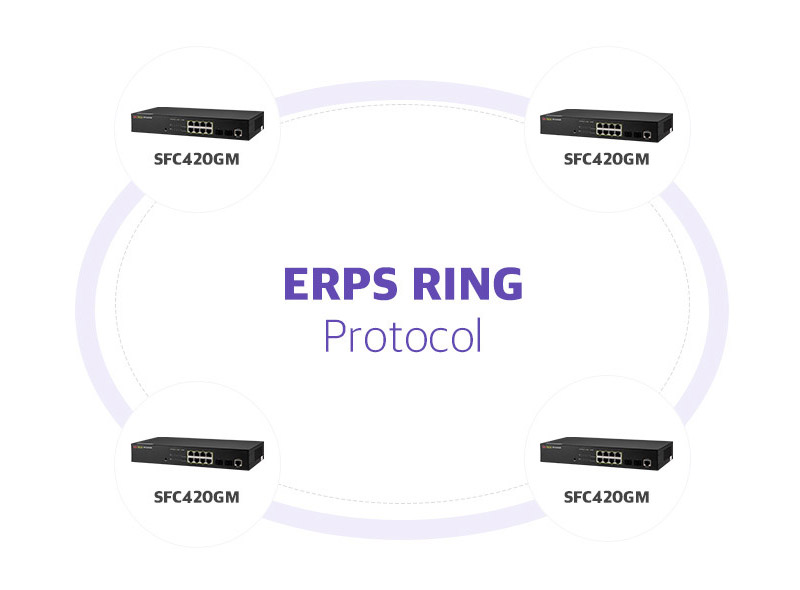

- Carrier Ethernet(G.8032 ERPS)
- MAC-based 802.3ad LACP based Link Fail-over Automatic
- RSTP (Rapid Spanning Tree Protocol)
- 19”Rack mountable
- Console port : 1RJ45 port
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T/ 100Base-TX and 1000Base-T/ Gigabit Fiber IEEE 802.3ad Port trunk with LACP IEEE 802.1w Rapid spanning tree protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control |
|---|---|
| RJ45 Ports | 10/ 100/1000Mbps TP 8-Port Auto-negotiation Auto MDI-X |
| Fiber Ports | SFP 2-Slot 1000Mbps-SX/LX SFP 100Mbps-FX SFP Speed auto detection |
| LED Indicatoin | Power, 1000Mbps Link/Act 10/100Mbps Link/Act per port |

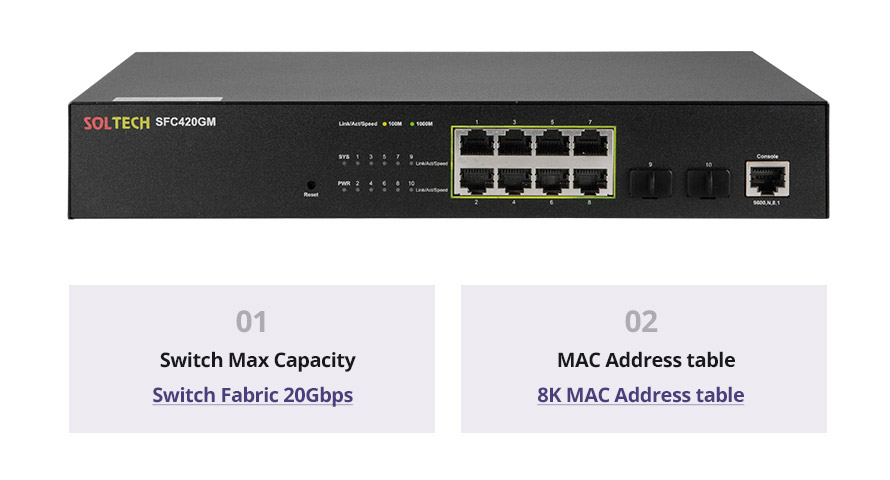

| Back Plane | Switch Fabric 20Gbps 4K MAC Address table Jumbo Frame 9.6Kbytes |
| Layer 2 | Management Interfaces : Web Browser, SNMPv1, v2c monitor and SNMP VLAN : Port-Based / 802.1Q Tagged Based VLAN Up to 64 VLAN groups Link Aggregation : Supports 4 groups of 8-Port trunk IEEE 802.3ad LACP QoS : Traffic classification based on 802.1p priority, DSCP field in IP Packet IGMP Snooping : IGMP(v1/v2/v3) Snooping, up to 64 multicast Groups |
| Temperature | Operating : 0℃ ~ 50℃ Storage : -20℃ ~ 70℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Input Voltage | 100 ~ 240VAC, 50/60Hz |
| Dimensions | 280mm(W) x 180mm(D) x 44mm(H) |
Description
Management Support Web-based management
Management Ethernet switch including 8 ports of RJ-45 10/100/1000Mbps for high-speed network connections and 2 SFP slots 100/1000Base-SX/LX
Seamless Network TP 8 Ports , SFP 2 Slots
Massive amount of data transfer can handled during secure topology connection to a backbone or High Power server. In addition, store-and-forward transportation is supported to ensure low delay time and high data integrity, eliminating unnecessary traffic and reducing congestion on network paths.
Quality verification completed 100% Made in Korea
100% Korea manufactured Ethernet switch. We have inspected all the processes from production to delivery, so please use it with confidence.

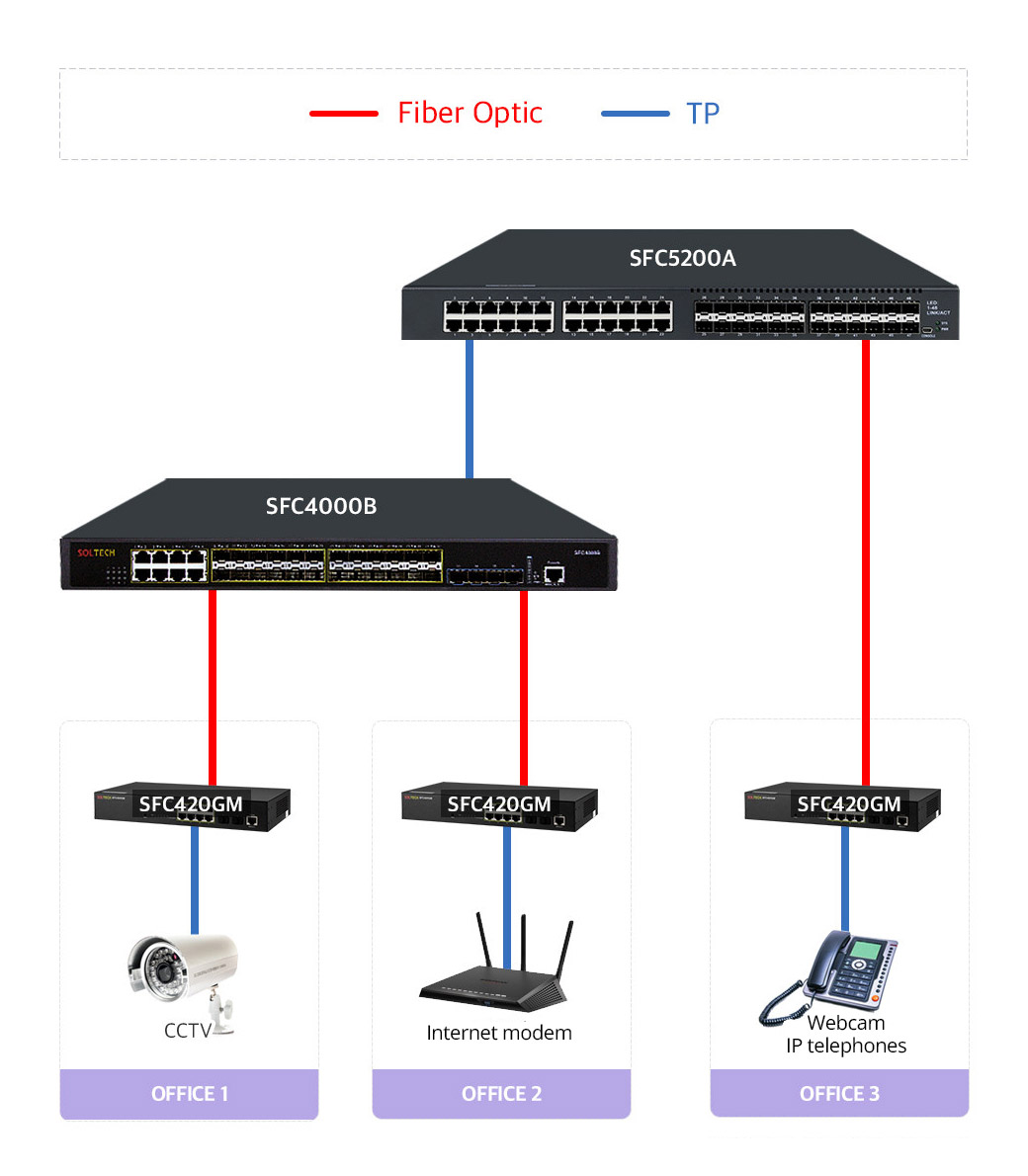

Build network equipment based on-site environments
Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.
Product Details

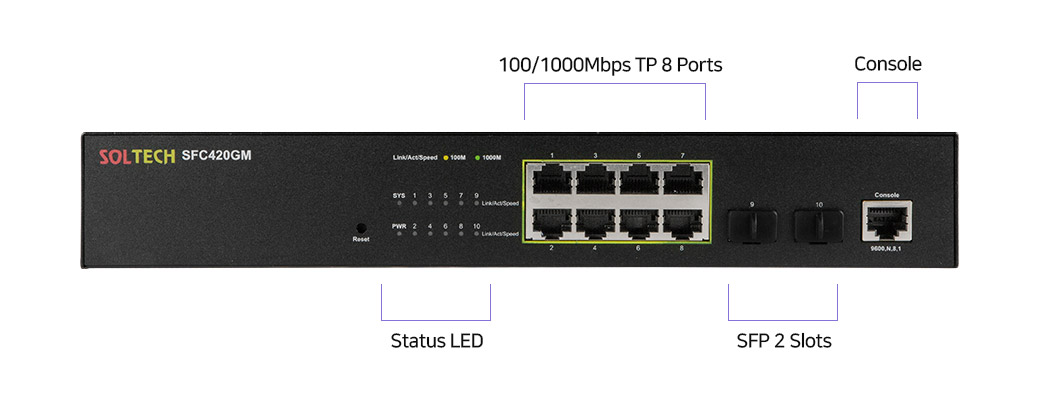

Construction

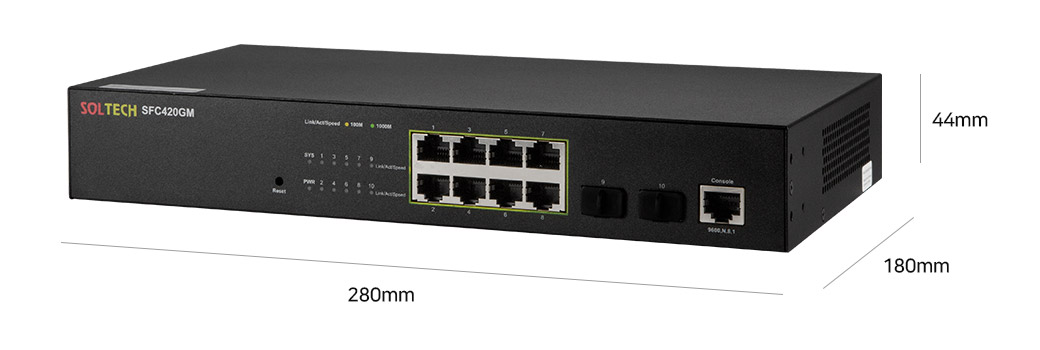

Dimensions
Compare Product Lines
| SFC400GM | SFC420GM | SFC400HP | SFC4000HP | SFC4000T | SFC450R | SFC450HP | SFC4500T | SFC4500HP | |
|---|---|---|---|---|---|---|---|---|---|
| RJ45Port | 8 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 24 TP(1Gbps) | 24 TP(1Gbps) | 8 TP(1Gbps) | 8 TP(1Gbps) | 24 TP(1Gbps) | 24 TP(1Gbps) |
| PoE Port | - | - | 8 PoE(af/at) | 24 PoE(af/at) | - | - | 8 PoE(af/at) | - | 24 PoE(af/at) |
| Combo Port | - | - | - | 2 Port(23,24) | - | - | - | 2 Port(23,24) | 2 Port(23,24) |
| SFP/SFP+ Port | 2 SFP(1Gbps) | 2 SFP(1Gbps) | 2 SFP(1Gbps) | 4 SFP(1Gbps) | 4 SFP(1Gbps) | 2 SFP(1Gbps) | 2 SFP(1Gbps) | 4 SFP(1Gbps) | 4 SFP(1Gbps) |
| Switch Fabric | 20Gbps | 20Gbps | 20Gbps | 52Gbps | 56Gbps | 20Gbps | 20Gbps | 52Gbps | 52Gbps |
| Throughput | 14.8Mpps | 14.8Mpps | 14.8Mpps | 36.68Mpps | 41.6Mpps | 14.8Mpps | 14.8Mpps | 38.68Mpps | 38.68Mpps |
| Memory(RAM) | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB | 128MB |
| Flash Memory | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB |
| MAC Table | 8K | 8K | 8K | 8K | 8K | 8K | 8K | 8K | 8K |
| Jumbo Frame | 9.6K | 9K | 9.6K | 9.6K | 9K | 9.6K | 9.6K | 9.6K | 9.6K |
| Operating Temperature | 0 ~ 60℃ | 0 ~ 50℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 50℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
| Power Input | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V |
| Power Consumption | AC 7.6W | AC 10W | AC 130W | AC 441W | AC 25W | AC 7.6W | AC 130W | AC 36W | AC 441.1W |
| PoE Capacity | - | - | PoE Max. 120W | PoE Max. 380W | - | - | PoE Max. 120W | - | PoE Max. 380W |
| Installation Method | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount |
| Dimension (WxDxH) | 217 x 155 x 44 (mm) | 280 x 180 x 44 (mm) | 331 x 153 x 44 (mm) | 439.5 x 300 x 44 (mm) | 440 x 230 x 45 (mm) | 217 x 155 x 44 (mm) | 331 x 153 x 44 (mm) | 439 x 300 x 44 (mm) | 439 x 300 x 44 (mm) |
| STP/RSTP/MSTP 802.1Q VLAN IEEE 802.1 IGMP Snooping |
 |
|
|
|
|
|
|
|
|
| ERPS, S-RING | |
|
|
|
|
|
|
|
|
