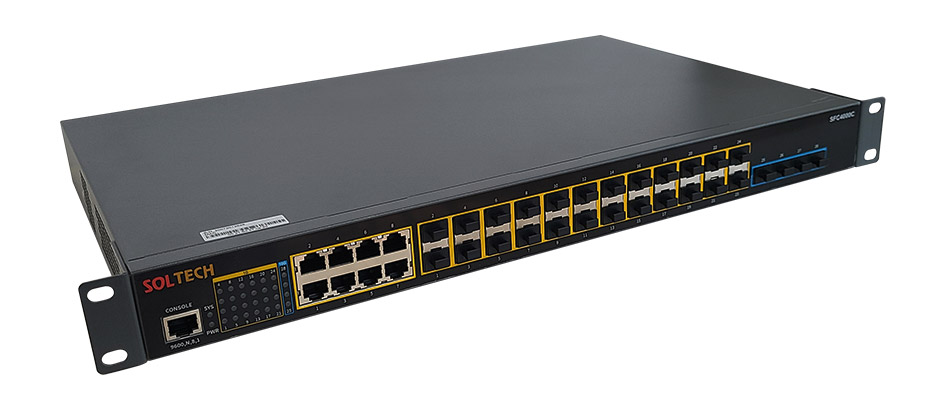

SFC4000C
P/N : SFC4000C
1Gbps TP 8-Ports(Combo) + 1Gbps SFP 24-Slots + 10Gbps SFP 4-Slots
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- TP 8-Port (Combo) + SFP 1G 24-Slot + SFP 10G 4-Slot Managed Switch
- 4k VLAN entries, GVRP, 802.1D(STP), 802.1W(RSTP), 802.1S(MSTP)
- IGMPv1/v2/v3, IGMP Snooping, Static routing
- MLDv1/v2, MLD Snooping
- Port isolation, port security, DHCP Snooping
- IEEE802.1x certification, Radius, TACACS+
- Static and LACP link aggregation, EAPS, ERPS
- Console, Telnet, SSH, HTTP, HTTPS, SNMPv1/v2/v3, RMON, NTP, SPAN, RSPAN
| Standards | 10Base-T : UTP category 3, 4, 5 cable (Maximum 100m) 100Base-T : UTP category 5, 5e cable (Maximum 100m) 1000Base-T : UTP category 5e, 6 cable (Maximum 100m) 1000Base-X : MMF, SMF 10GBase-X : MMF, SMF |
|---|---|
| RJ45 Ports | 1Gbps TP 8-Port (Combo) |
| Fiber Ports | 1Gbps SFP 24-Slot + 10Gbps SFP 4-Slot |
| LED Indicators | Power, System, Port Link/activity |
| Backplane | Switch Fabric 128Gbps, Forwarding rate 95.2Mbps |
| Flash | 32MB |
| DRAM | 256MB |
| MAC | 16K |
| Temperature | Operating : 0℃ ~ 50℃ Storage : -20℃ ~ 70℃ |
| Humidity | 10 ~ 90% (Non-condensing) |
| Power Input | AC 100 ~ 240V |
| Dimensions | 440mm(W) x 280mm(D) x 44mm(H) |
Description
Management Support Web-based management
SFP 28-slot Ethernet switch hub enables medium and small network deployment and supports web-based management to help customers manage their networks comfortably
1G SFP 24 Slots 10G SFP 4 Slots, TP 8 Ports Multi Port Switch
SFC4000C supports 4 SFP slots up to 10Gbps and 24 SFP slots up to 1Gbps including TP8 Ports for a seamless network experience
Product Details
Construction
Dimensions
SFC4000C with bracket
Compare Product Lines
| SFC4000C | SFC4100A | SFC4100B | SFC4200T | SFC4200HP | SFC4254T | SFC4500A | SFC4500A(DC) | |
|---|---|---|---|---|---|---|---|---|
| RJ45Port | 8 TP(1Gbps) | 4 TP(1Gbps) | 4 TP(1Gbps) | 24 TP(1Gbps) | 24 TP(1Gbps) | 48 TP(1Gbps) | 4 TP(1Gbps) | 4 TP(1Gbps) |
| PoE Port | - | - | - | - | 24 PoE(af/at) | - | - | - |
| Combo Port | 8 Port | 4 Port(1~4) | 4 Port(1~4) | - | - | - | 4 Port(1~4) | 4 Port(1~4) |
| SFP/SFP+ Port | 24 SFP(1Gbps) 4 SFP(10Gbps) |
24 SFP(1Gbps) 4 SFP(10Gbps) |
16 SFP(1Gbps) 8 SFP(2.5Gbps) 2 SFP(10Gbps) |
4 SFP(10Gbps) | 4 SFP(10Gbps) | 6 SFP(10Gbps) | 24 SFP(1Gbps) 4 SFP(10Gbps) |
24 SFP(1Gbps) 4 SFP(10Gbps) |
| Switch Fabric | 128Gbps | 128Gbps | 112Gbps | 128Gbps | 128Gbps | 216Gbps | 128Gbps | 128Gbps |
| Throughtput | 95.2Mpps | 95.2Mpps | 83.3Mpps | 95.2Mpps | 95.2Mpps | 160.7Mpps | 95.2Mpps | 95.2Mpps |
| Memory(RAM) | 512MB | 128MB | 128MB | 128MB | 512MB | 256MB | 128MB | 128MB |
| Flash Memory | 16MB | 16MB | 16MB | 32MB | 32MB | 32MB | 16MB | 16MB |
| MAC Table | 32K | 32K | 32K | 16K | 16K | 16K | 32K | 32K |
| Jumbo Frame | 9K | 4776 | 4.7K | 9K | 12K | 9K | 4.7K | 4.7K |
| Operating Temperature | 0 ~ 50℃ | 0 ~ 60℃ | 0 ~ 60℃ | -20 ~ 65℃ | 0 ~ 45℃ | -20 ~ 65℃ | 0 ~ 60℃ | 0 ~ 60℃ |
| Power Input | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC100~240V, DC48V |
| Power Consumption | AC 38W | AC 33.7W | AC 32.6W | AC 35W | AC 459.9W | AC 40W | AC 33.7W | AC33.7W, DC35W |
| PoE Capacity | - | - | - | - | PoE Max. 400W | - | - | - |
| Dual Power | - | - | - | - | - | - | - |  |
| Installation Method | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount |
| Dimension (WxDxH) | 440 x 280 x 44 (mm) | 439 x 203 x 44 (mm) | 439 x 203 x 44 (mm) | 440 x 180 x 44 (mm) | 440 x 330 x 44 (mm) | 440 x 280 x 44 (mm) | 439 x 203 x 44 (mm) | 439 x 203 x 44 (mm) |
| STP/RSTP/MSTP 802.1Q VLAN IEEE 802.1 IGMP Snooping |
|
|
|
|
|
|
|
|
| ERPS | |
|
|
|
|
|
||
| S-RING | |
|
