SFC400-SCS4
P/N : SFC400-SCS4
100Mbps TP 4-Ports + 100Mbps Fiber 4-Ports, Single-mode, SC Connector
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX
- Fiber Optic 100Mbps-FX, Ethernet 10/100Mbps-TX
- Switch Operation/Connection status LED display
- Auto MDI-X TP port, Auto Negotiation
- Built-in power supply (110 ~ 220VAC, DC 48V option)
- 19”RACK installation
- Operating temperature : 0℃ ~ 60℃
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 10/100Mbps-TX / 100Mbps-F |
|---|---|
| RJ45 Ports | 10/ 100Mbps TP Auto Negotiation Auto MDI / MDI-X TP/STP Cat. 3,4,5 Cable, EIA/TIA-568 100-ohm (100m) |
| Fiber Ports | 100Mbps-FX (SC Connector Type) Single-mode : 9/125㎛ (~100km) |
| LED Indicators | Power, FD, Link/Act, Speed |
| Troughput | 100Mbps |
| Temperature | Operation : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Installation | 19” Rack Installation |
| Input Power | 110 ~ 220VAC, 50/60Hz |
| Dimensions | 317mm (W) x 150mm (D) x 35mm (H) |
Description

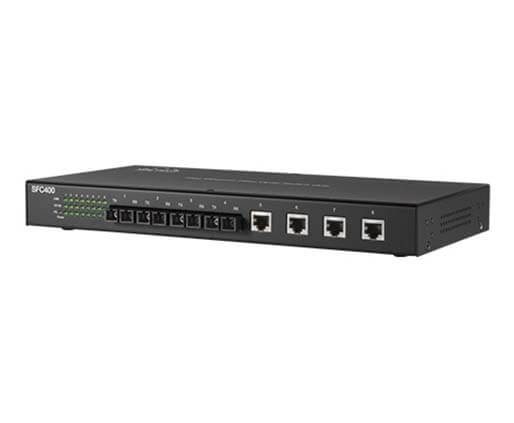

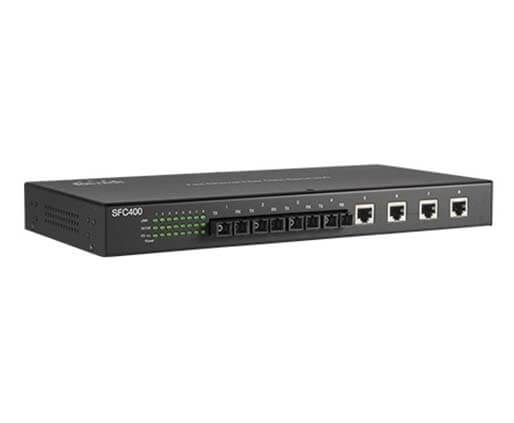

100Mbps Fiber SC 4 Port 10/100Mbps TP 4 Ports unmanaged Single mode Ethernet Switch
Ethernet switch that can transmit 100Mbps ethernet signal for 20km distance in SC single mode. It is necessary for Fiber to UTP connection, and reliable transmission at wide bandwidth and long distance is possible.
Quality verification completed 100% Made in Korea
100% Korea manufactured Ethernet switch. We have inspected all the processes from production to delivery, so please use it with confidence.
Build network equipment based on-site environments
Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.
Product Details
Dimensions
Compare Product Lines
| SOLTECH2600 | SFC300G | SFC400-SCS | SFC400-SCS2 | SFC400-SCS4 | SFC400-SCS6 | SFC400-SCM | SFC400-SCM2 | SFC400-SCM4 | SFC400-SCM6 | |
|---|---|---|---|---|---|---|---|---|---|---|
| RJ45Port | 24 TP(1Gbps) | 2 TP(1Gbps) | 7 TP(100Mbps) | 6 TP(100Mbps) | 4 TP(100Mbps) | 2 TP(100Mbps) | 7 TP(100Mbps) | 6 TP(100Mbps) | 4 TP(100Mbps) | 2 TP(100Mbps) |
| SFP/SFP+ Port | 2 SFP(1Gbps) | 2 SFP(1Gbps) | 1 SC(100Mbps) | 2 SC(100Mbps) | 4 SC(100Mbps) | 6 SC(100Mbps) | 1 SC(100Mbps) | 2 SC(100Mbps) | 4 SC(100Mbps) | 6 SC(100Mbps) |
| Switch Fabric | 52Gbps | 8Gbps | 1.6Gbps | 1.6Gbps | 1.6Gbps | 1.6Gbps | 1.6Gbps | 1.6Gbps | 1.6Gbps | 1.6Gbps |
| Throughtput | 38.6Mpps | 5.9Mpps | 1.2Mpps | 1.2Mpps | 1.2Mpps | 1.2Mpps | 1.2Mpps | 1.2Mpps | 1.2Mpps | 1.2Mpps |
| Fiber Mode | - | - | Single-mode | Single-mode | Single-mode | Single-mode | Multi-mode | Multi-mode | Multi-mode | Multi-mode |
| Transmission Distance | - | - | 20km | 20km | 20km | 20km | 2km | 2km | 2km | 2km |
| MAC Table | 8K | 1K | 1K | 1K | 2K | 2K | 1K | 1K | 2K | 2K |
| Operating Temperature | 0 ~ 40℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
| Power Input | AC 100 ~ 240V | DC 12V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V |
| Power Consumption | AC 8.7W | AC 8.2W | AC 5.6W | AC 7.8W | AC 13.6W | AC 13.8W | AC 5.6W | AC 7.8W | AC 13.6W | AC 13.8W |
| Installation Method | Rack Mount | Wall Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount |
| Dimension(WxDxH) | 440x205x44(mm) | 104.8x98x26.2(mm) | 240x165x35(mm) | 240x165x35(mm) | 317x150x35(mm) | 317x150x35(mm) | 240x165x35(mm) | 240x165x35(mm) | 317x150x35(mm) | 317x150x35(mm) |
