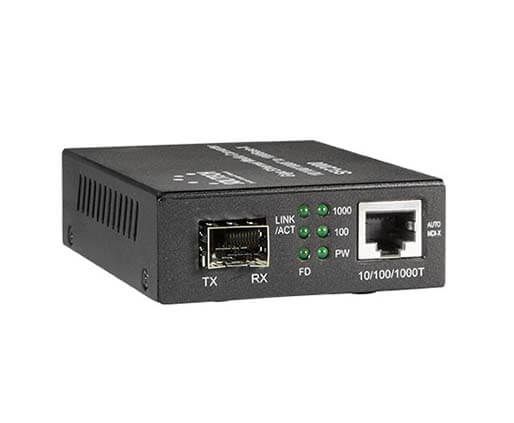

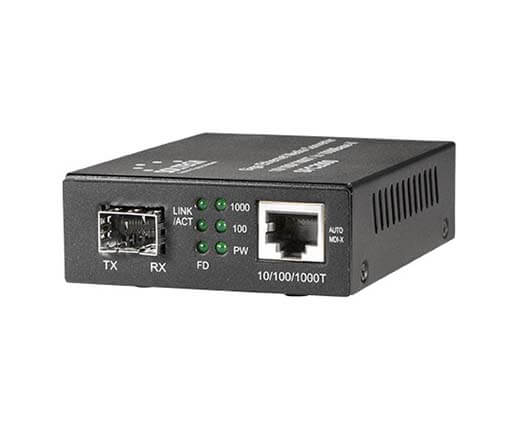

SFC2000-SFP
P/N : SFC2000-SFP
1 TP(10/100/1000Mbps) + 1 SFP(1Gbps)
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- Converts UTP (100/1000Mbps) to Fiber Optic (1000Mbps SX/LX) for Long distance Transmission
- Network Component for Optical LAN, FA, Internet Network, FTTH etc.
- Auto MDI/MDI-X
- SFP Optical Module Mounted (1.25Gbps Exclusive)
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3ab 1000Base-T IEEE 802.3z Gigabit fiber |
|---|---|
| RJ45 Ports | 1-Port 10/100/1000Mbps TP Auto Negotiation Auto MDI/MDI-X TP/STP Cat. 3, 4, 5 Cable EIA/TIA-568 100-ohm( 100m) |
| Fiber Ports | 1×1000Mbps- SX/LX/ZX (LC connector) SFP Slot Multi-mode : 62.5/125㎛(220m) Single-mode : 9/125㎛(~80km) |
| LED Indicators | Per unit: Power TX Port (Link/Act, FDX/HDX,1000Mbps,100Mbps) FX Port (Link/Act) |
| Dip Switch | Internal, Auto-Negotiation, 10/100/1000Mbps Full/Half Duplex, FLCF on/off |
| Data transfer | 1000Mbps |
| Temperature | Operation : 0℃ ~ 60℃ Store : -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Installation | Stand alone, Center Mount Module Type |
| Input Voltage | DC 12V 1.5A SMPS Adapter |
| Dimensions | 71mm(W) x 94mm(D) x 26mm(H) |
Description
Stable long-distance communication Gigabit optical converter
1Gbps TP 1 Port + 1Gbps SFP 1 Slot (Single or Multi mode)
Applies RJ-45 connector for 10/100/1000BASE-T UTP connections and an SC type connector for optical cables connections. Reliable transmission of large bandwidth and long distances over Giga Ethernet networks and required for optical and UTP cable connections.
Quality verificated 100% Made In Korea
SFC2000-SFP is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.
Build network equipment based on-site environments
Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.
Product Details
Dimensions
From one to several Various ways of installations are available.
*Bracket must be purchased separately.
Compare Product Lines
| SFC200-SCS | SFC200-SCS/M | SFC200-SCS/I | SFC200-SCM | SFC200-SCM/M | SFC200-SCM/I | SFC200-STM | SFC200-STM/M | SFC200-STM/I | SFC200-SCS40 | SFC200-SCS40/M | SFC200-SCS40/I | SFC200-SCSWA | SFC200-SCSWB | SFC200-SCSWA/M | SFC200-SCSWB/M | SFC200-SCSWA/I | SFC200-SCSWB/I | SFC2000-SFP | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RJ45Port | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(100Mbps) | 1 TP(1Gbps) |
| PoE Port | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Combo Port | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| SFP/SFP+ Port | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SC(100Mbps) | 1 SFP(100Mbps) |
| Fiber Mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode | Single/Multi-mode |
| Transmission Distance | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 20km | 200m/10km |
| Wavelength | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 1550/1310nm | 1310/1550nm | 1550/1310nm | 1310/1550nm | 1550/1310nm | 1310/1550nm | - |
| Operating Temperature | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ |
| Power Input | DC 5V | DC 5V | AC 220V | DC 5V | DC 5V | AC 220V | DC 5V | DC 5V | AC 220V | DC 5V | DC 5V | AC 220V | DC 5V | DC 5V | DC 5V | DC 5V | AC 220V | AC 220V | DC 12V |
| Power Consumption | AC 2.9W | AC 2.9W | AC 3.55W | AC 2.9W | AC 2.9W | AC 3.55W | AC 2.9W | AC 2.9W | AC 3.55W | AC 2.9W | AC 2.9W | AC 3.55W | AC 2.9W | AC 2.9W | AC 2.9W | AC 2.9W | AC 3.55W | AC 3.55W | AC 2.27W |
| Installation Method | Wall Mount | Chassis Module | Wall Mount | Wall Mount | Chassis Module | Wall Mount | Wall Mount | Chassis Module | Wall Mount | Wall Mount | Chassis Module | Wall Mount | Wall Mount | Wall Mount | Chassis Module | Chassis Module | Wall Mount | Wall Mount | Wall Mount |
| Dimension(WxDxH) | 71x94x26(mm) | 12-Slots : 85x95x29.8(mm) 16-Slots : 87x95x25.5(mm) |
118x184x34(mm) | 71x94x26(mm) | 12-Slots : 85x95x29.8(mm) 16-Slots : 87x95x25.5(mm) |
118x184x34(mm) | 71x94x26(mm) | 12-Slots : 85x95x29.8(mm) 16-Slots : 87x95x25.5(mm) |
118x184x34(mm) | 71x94x26(mm) | 12-Slots : 85x95x29.8(mm) 16-Slots : 87x95x25.5(mm) |
118x184x34(mm) | 71x94x26(mm) | 71x94x26(mm) | 12-Slots : 85x95x29.8(mm) 16-Slots : 87x95x25.5(mm) |
12-Slots : 85x95x29.8(mm) 16-Slots : 87x95x25.5(mm) |
118x184x34(mm) | 118x184x34(mm) | 71x94x26(mm) |
