SOL-SCU-00/SOL-SCA-00
P/N : 3mm Round Drop Cable SC Connector
3mm Round Drop Cable SC Splice Connector
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- FTTH Field-Fusion Type
- Pre-polished and no need of matching gel
- No Sleeve Heating process required
- Fiber protection using simple wing type sleeves
- Quick and easy assembly
- Lower Insertion and return loss
| Connector Type | SC, UPC/APC |
|---|---|
| Jacket Type | 3mm Round Drop Cable Single Core |
| Boot Type | Screw |
| Insertion Loss | Single-Mode : < 0.2 dB (including Splicing loss) Multi-Mode : < 0.2 dB (including Splicing loss) |
| Return Loss | Single-Mode : < 55 dB (UPC), < 60 dB (APC) Multi-Mode : < 30 dB (UPC) |
| Operating Temperature | -40 ~ 75℃ |
| Certification | RoHS |
Description
3mm Round Drop Cable SC Splice Connector
SOLMate splicing connector solution is designed to resolve the issues of both fast connector and existing splice on connectors.

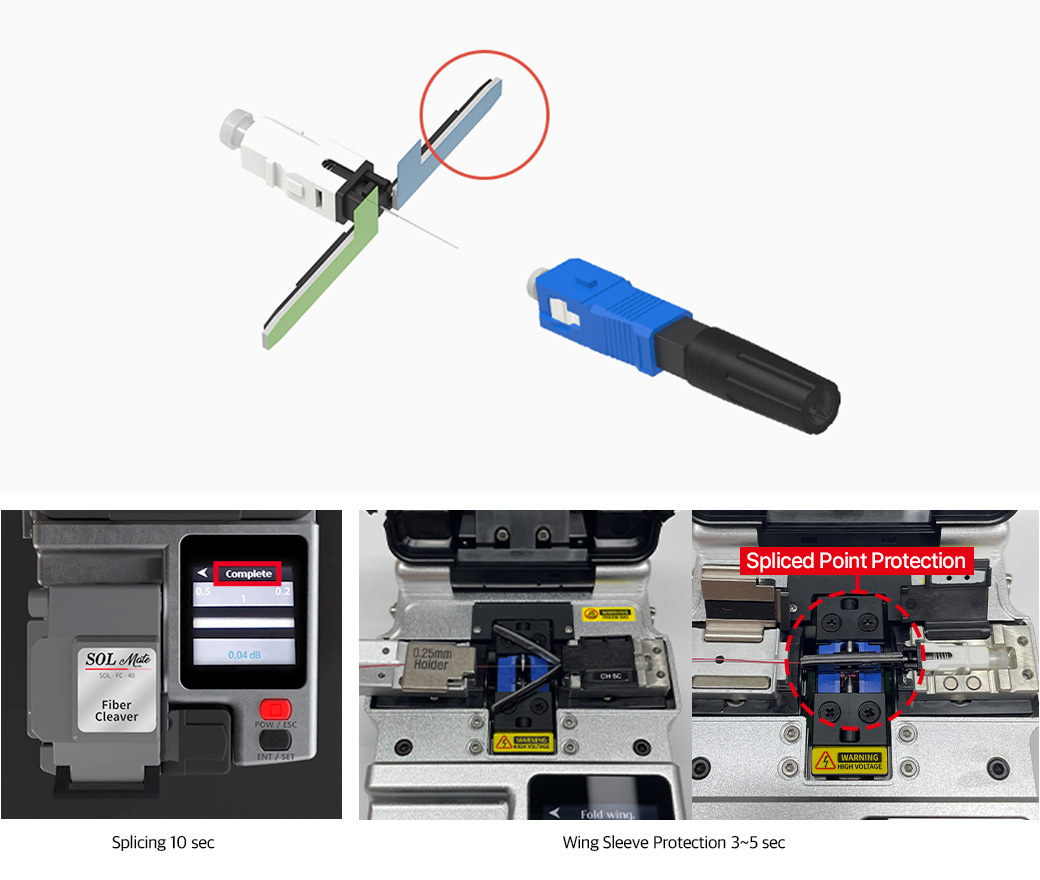

Industrial Wing Tape Protection Sleeve
Without using matching gel, the quality enhances and, it is more quick and simple to assemble reducing operator failure without heating procedure.

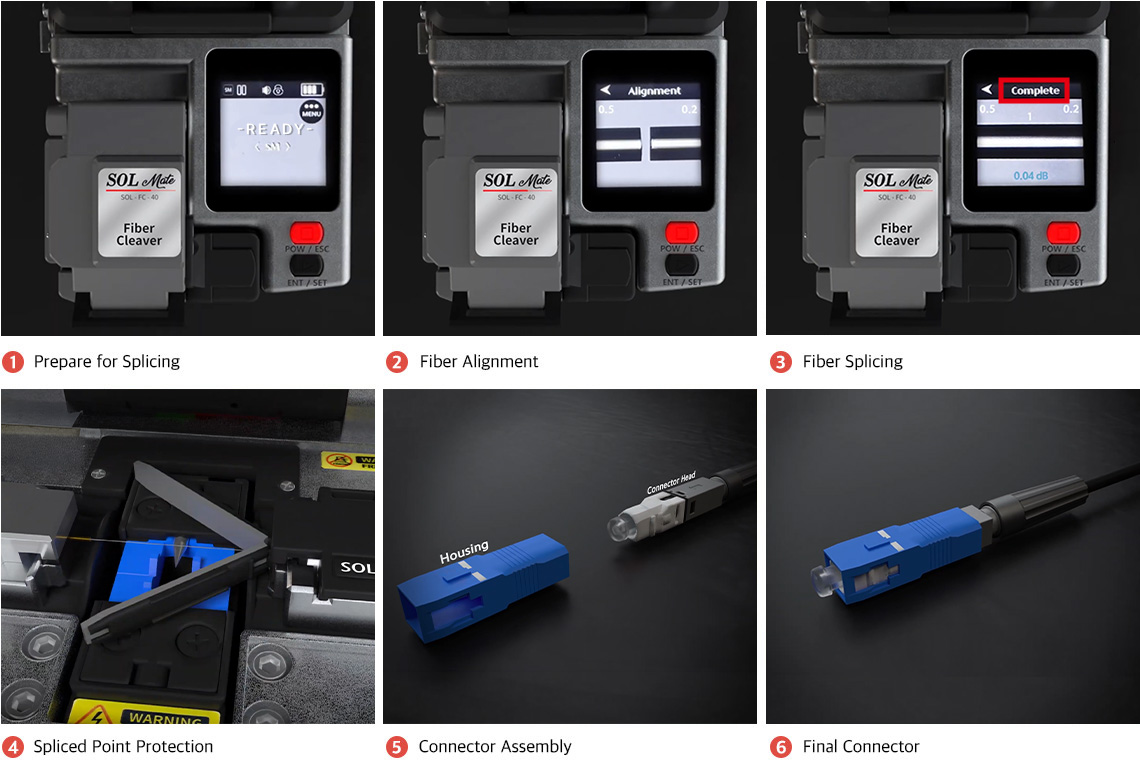

Simple Connector Making Process
Product Details
Construction

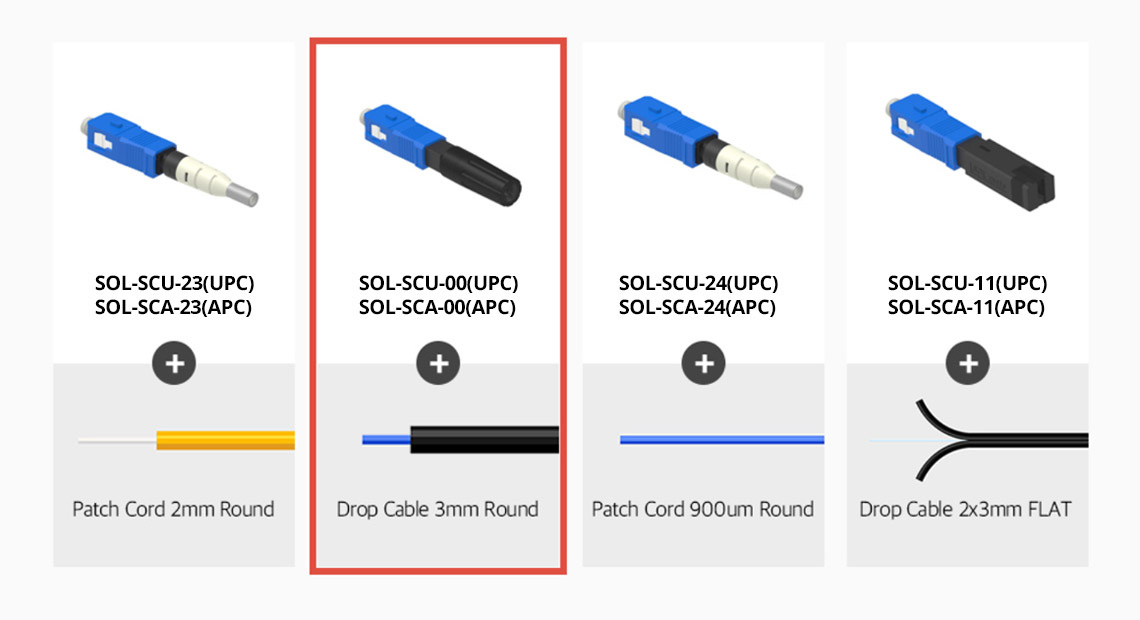

Connector Type

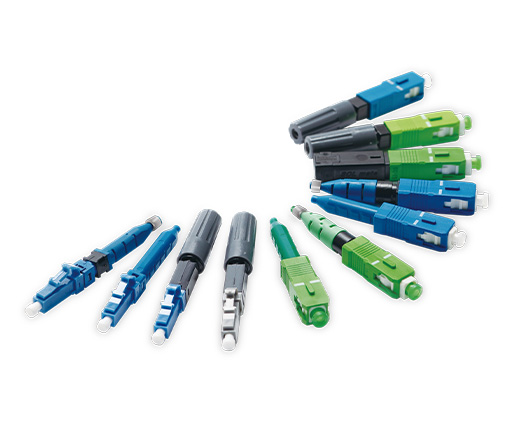

Compare Product Lines
| SOL-SCU-00/SOL-SCA-00 | SOL-SCU-11/SOL-SCA-11 | SOL-SCU-23/SOL-SCA-23 | SOL-SCU-24/SOL-SCA-24 | SOL-LCU-00 | SOL-LCU-23/SOL-LCA-23 | SOL-LCU-24/SOL-LCA-24 | |
|---|---|---|---|---|---|---|---|
| Connector Type | SC, UPC/APC | SC, UPC/APC | SC, UPC/APC | SC, UPC/APC | LC, UPC | LC, UPC/APC | LC, UPC/APC |
| Jacket Type | 3mm Round Drop Cable Single Core | 2x3mm Flat Drop Cable Single Core | 2mm Patch Cord Cable Single Core | 900um Patch Cord Cable Single Core | 3mm Round Drop Cable Single Core | 2mm Patch Cord Cable Single Core | 900um Patch Cord Cable Single Core |
| Boot Type | Screw | One Click | Soft | Soft | Screw | Soft | Soft |
| Single-Mode Insertion Loss |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
| Multi-Mode Insertion Loss |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
< 0.2 dB (including Splicing loss) |
| Single-Mode Return Loss |
< 60 dB (APC) < 55 dB (UPC) |
< 60 dB (APC) < 55 dB (UPC) |
< 60 dB (APC) < 55 dB (UPC) |
< 60 dB (APC) < 55 dB (UPC) |
< 60 dB (APC) < 55 dB (UPC) |
< 60 dB (APC) < 55 dB (UPC) |
< 60 dB (APC) < 55 dB (UPC) |
| Multi-Mode Return Loss |
< 30 dB (UPC) | < 30 dB (UPC) | < 30 dB (UPC) | < 30 dB (UPC) | < 30 dB (UPC) | < 30 dB (UPC) | < 30 dB (UPC) |
| Operating Temperature | -40 ~ 75℃ | -40 ~ 75℃ | -40 ~ 75℃ | -40 ~ 75℃ | -40 ~ 75℃ | -40 ~ 75℃ | -40 ~ 75℃ |
| Certification | RoHS | RoHS | RoHS | RoHS | RoHS | RoHS | RoHS |
