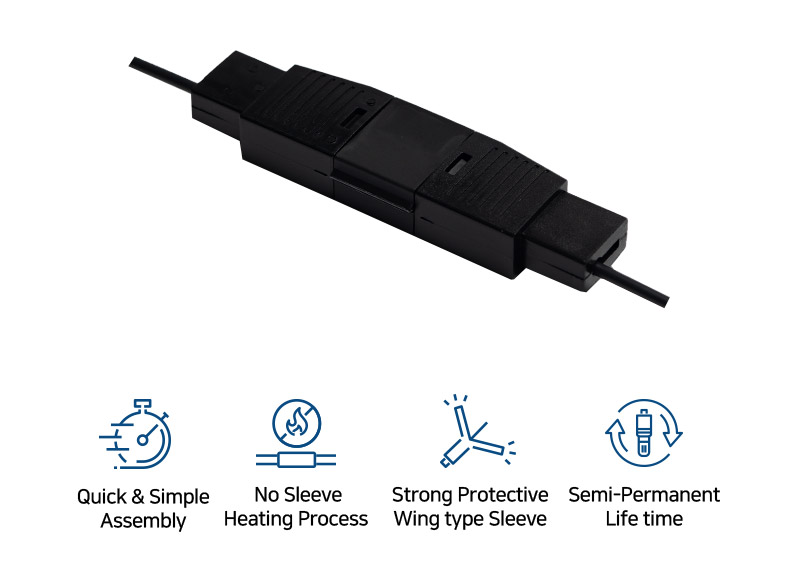

2x3mm Flat Drop Cable Outdoor IC Closure
P/N : SOL-211
Outdoor 2x3mm Flat FTTH Drop Cable Splice IC Closure
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- Adhesive wing type sleeve for splice point protection
- No heating procedure required
- Easy and quick assembly with low loss
- IP65 waterproof function for outdoor closure
| Model Type | Outdoor IC Type |
|---|---|
| Cable Type | Flat(Fig-8) |
| Insertion Loss | < 0.1 dB |
| Return Loss | < 60 dB |
| Core | Single Core |
| Operating Temperature | -40 ~ 75℃ |
| Waterproof |
|
| Dimension | 98.6mm(W) x 26.5mm(D) x 12.3mm(H) |
| Weight | 2.7g |
| Certification | RoHS, CE |
Description
Outdoor 2x3mm Flat FTTH Drop Cable Splice IC Closure

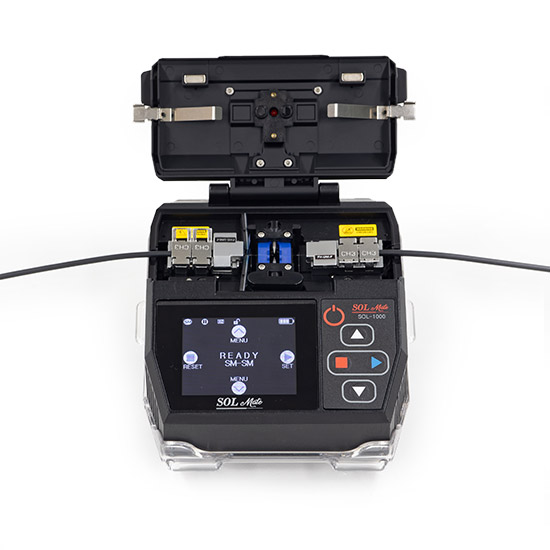

With the SOLMate field fusion splicing tool and the indoor and outdoor closure solution, the broken drop cable can be simply recovered with up to 100N tensile force and with no waste of cable. IP65 waterproof function for outdoor closure.
Industrial Wing Tape Protection Sleeve
Based on wing type adhesive sleeve method for protecting the spliced point, conventional sleeve heating process for fiber splicing is no longer necessary allowing fast and easy assembly

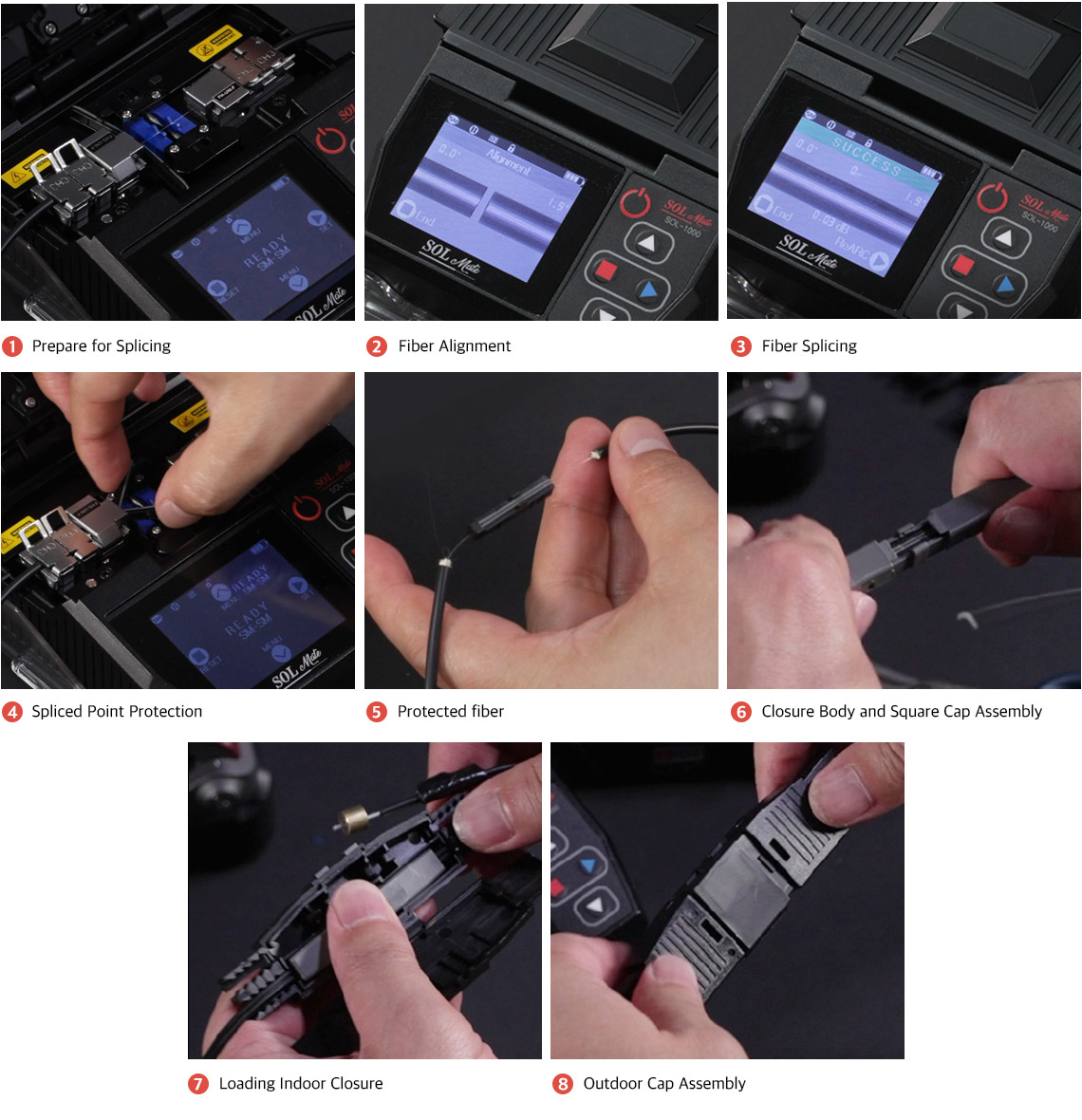

Simple Closure Making Process

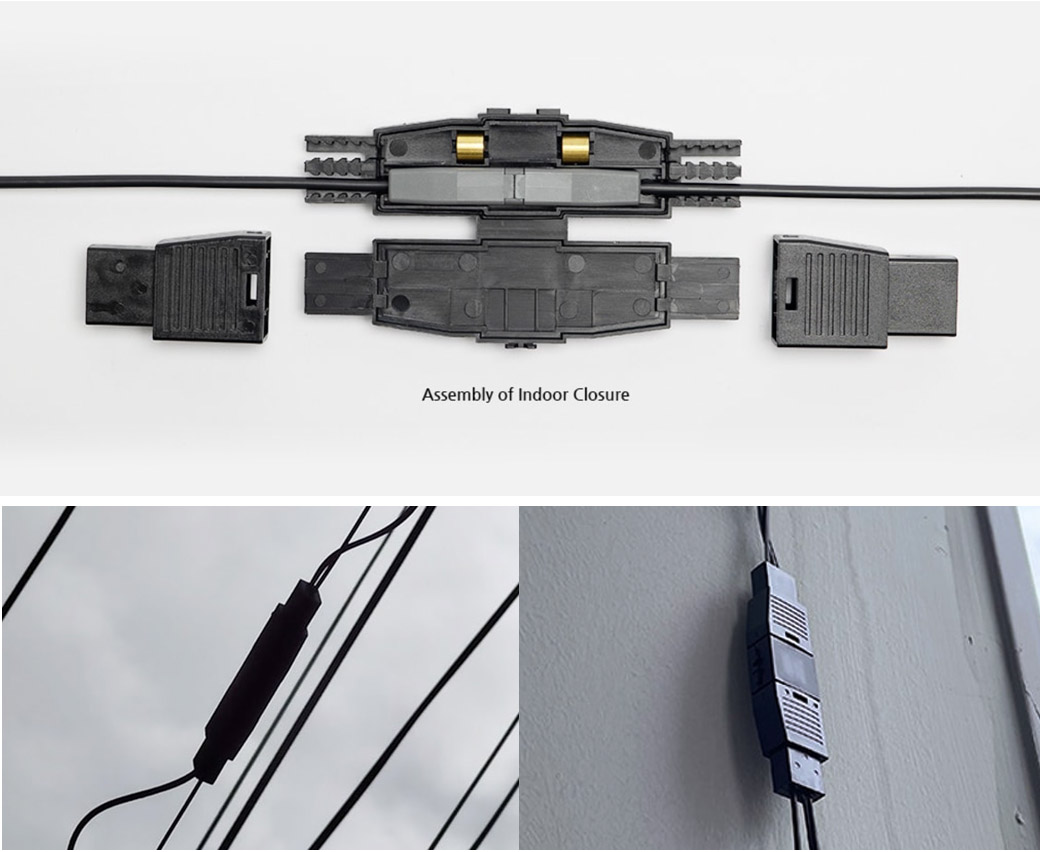

Product Details

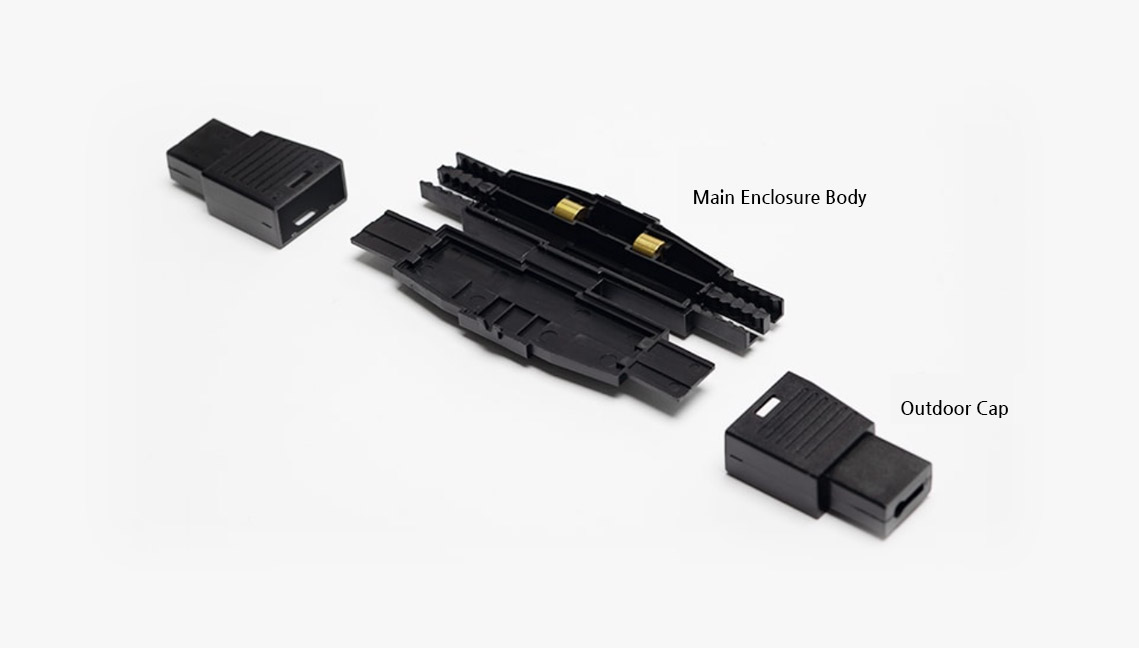

Construction
Closure Type

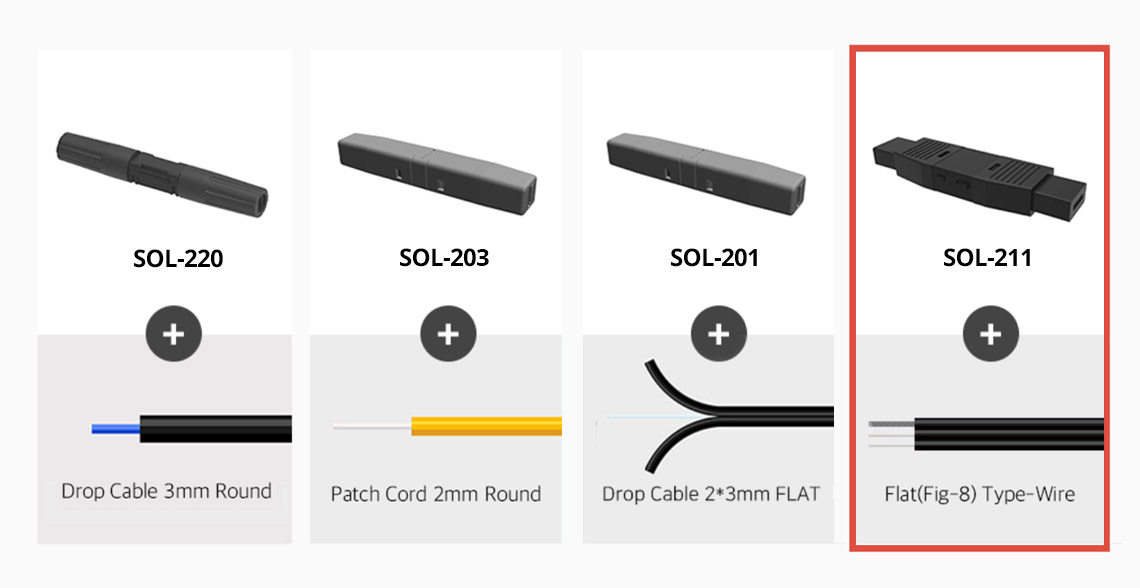

Compare Product Lines
| SOL-201 | SOL-203 | SOL-220 | SOL-211 | |
|---|---|---|---|---|
| Model Type | Indoor IC Type | Indoor IC Type | Indoor Screw Type | Outdoor IC Type |
| Cable Type | 2x3mm Flat, Flat(Fig-8) | 2mm Patch cord | 3mm Round | Flat(Fig-8) |
| Insertion Loss | < 0.1 dB | < 0.1 dB | < 0.1 dB | < 0.1 dB |
| Return Loss | < 60 dB | < 60 dB | < 60 dB | < 60 dB |
| Core | Single Core | Single Core | Single Core | Single Core |
| Operating Temperature | -40 ~ 75℃ | -40 ~ 75℃ | -40 ~ 75℃ | -40 ~ 75℃ |
| Certification | RoHS | RoHS | RoHS, CE | RoHS, CE |
| Waterproof | - | - | - | |
| Dimension(WxDxH) | 51.8x 8.5 x 7.7(mm) | 51.8x 8.5 x 7.7(mm) | 51.8x 8.5 x 7.7(mm) | 51.8x 8.5 x 7.7(mm) |
| Weight | 2.7g | 2.7g | 2.7g | 2.7g |
