SFC2000-SL/SFP
P/N : SFC2000-SL/SFP
100Mbps to 100Mbps, 1Gbps to 1Gbps SFP 2-Slots, Multi-mode/ Single-mode Converter
DatasheetQuote inquiry
Shipping & Delivery
1 Years Warranty
  • Specifications
  • Description
  • Product Details
  • Compare Product Lines

Specifications

Key Features
  • Converts 1000Mbps-SX (Multi mode) to 1000Mbps-LX (Single mode)
  • Converts 100Mbps-FX (Multi mode) to 100Mbps-FX (Single mode)
  • Uses Multi-mode LC Connector, Single-mode LC Connector
  • SFP Optical Module Mounted (1.25Gbps, 155Mbps)
Standards IEEE 802.3u 100Base-FX
IEEE 802.3z Gigabit fiber
Fiber Ports 2×100/1000Base- SX/LX/ZX (LC connector) SFP Slot
Multi-mode : 62.5/125㎛ (220m)
Single-mode : 9/125㎛ (~80km)
LED Indicators Power, Link1, Link2
Data transfer 1000Mbps, 100Mbps
Temperature Operation : 0℃ ~ 60℃
Store : -20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Installation Stand alone, Center Mount Module Type
Input Voltage DC 12V 1.5A SMPS Adapter
Dimensions 71mm(W) x 94mm(D) x 26mm(H)

Description

Stable long-distance communication Gigabit optical converter 100Mbps to 100Mbps, 1Gbps to 1Gbps SFP 2 Slots, Multi/Single mode Converter

Converter required for optical and UTP cable connections for wide bandwidth, long distance transmission, and stable transmission on the Giga Ethernet network.

Quality verificated 100% Made In Korea

SFC2000-SLSFP is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

Build network equipment based on-site environments

Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

Product Details

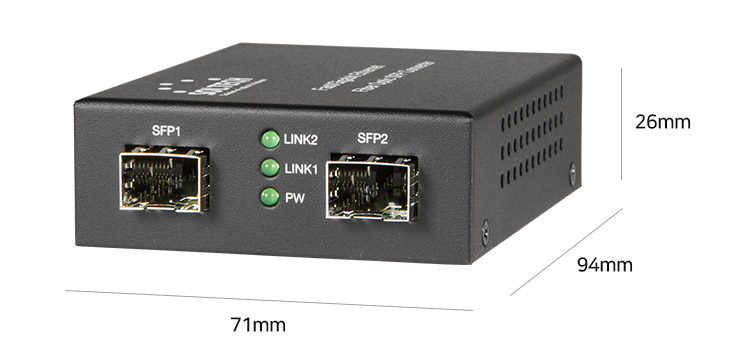

Dimensions

Compare Product Lines

  SFC2000-SL/SFP SFC2000HP SFC2000-TL20 SFC2000-TL20/M SFC2000-TL20/I SFC2000-TL40 SFC2000-TL40/M SFC2000-TL40/I SFC2000-TS SFC2000-TS/M SFC2000-TS/I SFC2000-TWLA20 SFC2000-TWLB20 SFC2000-TWLA20/M SFC2000-TWLB20/M SFC2000-TWLA20/I SFC2000-TWLB20/I
RJ45Port - 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps)
SFP/SFP+ Port 2 SFP(1Gbps) 1 SFP(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps)
Fiber Mode - - Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Multi-mode Multi-mode Multi-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode
Transmission Distance - - 20km 20km 20km 40km 40km 40km 220m 220m 220m 20km 20km 20km 20km 20km 20km
Wavelength - - 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm
Operating Temperature 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃
Power Input AC 0.5W AC 1W DC 12V DC 12V AC 220V DC 12V DC 12V AC 220V DC 12V DC 12V AC 220V DC 12V DC 12V DC 12V DC 12V AC 220V AC 220V
Power Consumption AC 2W AC 40.5W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 5.3W AC 5.3W AC 3.55W AC 5.3W AC 5.3W AC 5.3W AC 5.3W AC 3.55W AC 3.55W
PoE Capacity - PoE Max. 24W - - - - - - - - - - - - - - -
Installation Method Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount
Dimension(WxDxH) 71x94x26(mm) 70x95x26(mm) 71x94x26(mm) 71x94x26(mm) 118x184x34(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 118x184x34(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 118x184x34(mm) 118x184x34(mm)

Can be Used
