SFC400GM
P/N : SFC400GM
8 TP(10/100/1000Mbps) + 2 SFP(100M/1Gbps)
Shipping & Delivery
1 Years Warranty
Specifications
Key Features
- TP 8-Port + SFP 2-Slot Gigabit Ethernet Switch
- 20Gbps switch fabric, non-blocking switch architecture
- IEEE 802.3Q Tagged based/Port Based VLAN
- IGMP Snooping
- SNMP Trap (Cold start, Port Link, Power status)
- IEEE 802.1x User Authentication for Network Security
- Port Mirroring function for analyzing Network Error and Traffic
- Automatic Link Fail-over by Mac-based 802.3ad LACP
- RSTP (Rapid Spanning Tree Protocol)
- 19” Rack installable
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T/ 100Base-TX and 1000Base-T/ Gigabit Fiber IEEE 802.3ad Port trunk with LACP IEEE 802.1w Rapid spanning tree protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control |
|---|---|
| RJ45 Ports | 10/100/1000Mbps TP 8-Ports Auto-negotiation Auto MDI-X |
| Fiber Ports | SFP 2-Slots 1000Base-SX/LX SFP |
| LED Indicators | Power, 1000Mbps Link/Act 10/100Mbps Link/Act per port |
| Back Plane | Switch Fabric 20Gbps 8K MAC Address table Jumbo Frame(byte) : 9,600 |
| Layer 2 | Management Interfaces : Web Browser, SNMPv1, v2c monitor and SNMP Trap VLAN : Port-Based / 802.1Q Tagged Based VLAN Up to 64 VLAN groups Link Aggregation : Supports 4 groups of 8-Port trunk IEEE 802.3ad LACP QoS : Traffic classification based on 802.1p priority, DSCP field in IP Packet IGMP Snooping : IGMP(v1/v2/v3) Snooping, up to 64 multicast Groups |
| Temperature | Operation : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Input Voltage | 100~240VAC, 50/60Hz, Power consumption 8.8W |
| Dimensions | 217mm(W) x 155mm(D) x 44mm(H) |
Description
Management Support Web-based management
Management Ethernet switch including 8 ports of RJ-45 10/100/1000Mbps for high-speed network connections and 2 SFP slots 100/1000Base-SX/LX

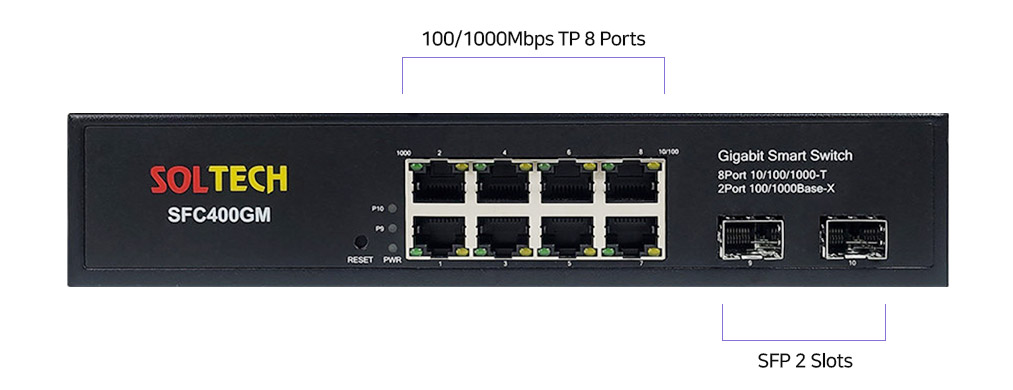

Seamless Network TP 8 Ports , SFP 2 Slots
Massive amount of data transfer can handled during secure topology connection to a backbone or High Power server. In addition, store-and-forward transportation is supported to ensure low delay time and high data integrity, eliminating unnecessary traffic and reducing congestion on network paths.
Quality verification completed 100% Made in Korea
100% Korea manufactured Ethernet switch. We have inspected all the processes from production to delivery, so please use it with confidence.
Build network equipment based on-site environments
Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.
Product Details
Construction

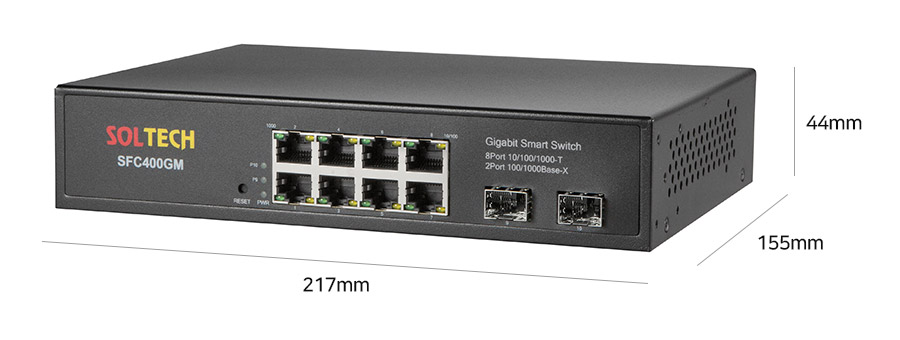

Dimensions
Compare Product Lines
| SFC400GM | SFC400HP | SFC4000HP | SFC4000C | SFC4000T | SFC4100A | |
|---|---|---|---|---|---|---|
| TP Port | 8 TP (10/100/1000Mbps) |
8 TP (10/100/1000Mbps) |
24 TP (10/100/1000Mbps), 2Combo |
8 TP (10/100/1000Mbps), 8 Combo |
24 TP (10/100/1000Mbps) |
4 TP (10/100/1000Mbps), 4Combo |
| Fiber Port | 2 SFP(100M/1Gbps) | 2 SFP(100M/1Gbps) | 4 SFP(100M/1Gbps), 2Combo | 24 SFP(100M/1Gbps) + 4 SFP+(1G/10Gbps), 8Combo |
4 SFP(100M/1Gbps) | 24 SFP(100M/1Gbps) + 4 SFP+(10Gbps), 4Combo |
| PoE Port | - | 8 PoE(af/at), PoE Max. 120W | 24 PoE(af/at), PoE Max. 380W | - | - | - |
| Switch Fabric | 20Gbps | 20Gbps | 52Gbps | 128Gbps | 56Gbps | 128Gbps |
| Throughput | 14.88Mpps | 14.88Mpps | 38.68Mpps | 95.23Mpps | 41.66Mpps | 95.23Mpps |
| RAM/Flash Memory | 128MB/16MB | 128MB/16MB | 128MB/16MB | 256MB/16MB | 256MB/16MB | 256MB/16MB |
| MAC Table | 8K | 8K | 8K | 8K | 16K | 32K |
| Jumbo Frame(byte) | 9,600 | 9,600 | 9,600 | 9,216 | 9,216 | 4,776 |
| Input Power | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V |
| No-load/Maximum | 3.15W / 7.6W | 8.7W / 130W | 26W / 441.1W | 20W / 38W | 7W / 25W | 14.7W / 33.7W |
| Operating Temperature | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 60℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 60℃ |
| Dimension(WxDxH) | 217 x 155 x 44 (mm) | 330.5 x 152.9 x 44.1 (mm) | 439.2 x 300 x 44 (mm) | 440 x 280 x 44 (mm) | 440 x 208 x 44 (mm) | 439.2 x 203 x 44 (mm) |
