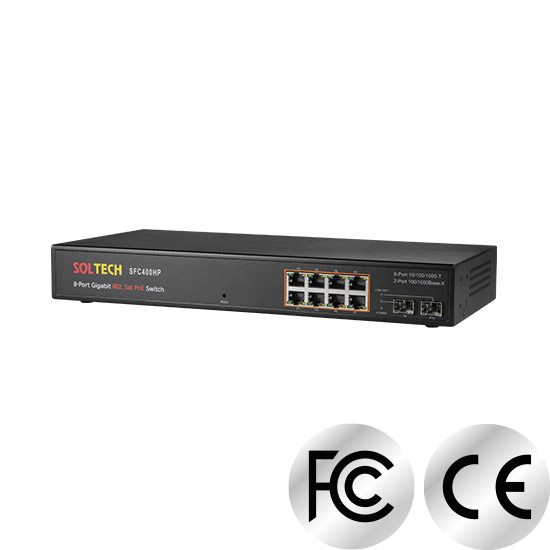

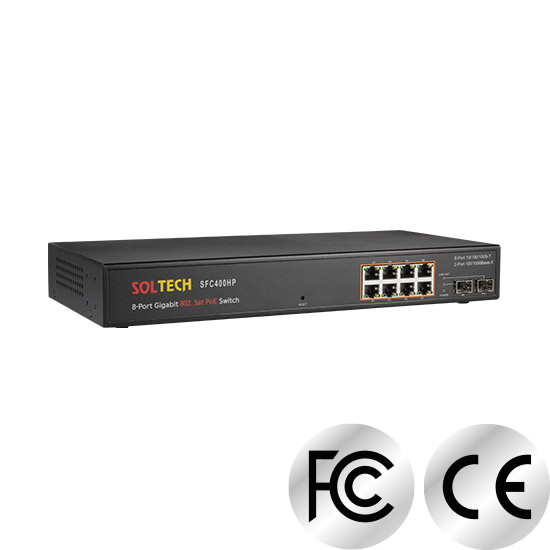

SFC400HP
P/N : SFC400HP
8 TP(10/100/1000Mbps) + 2 SFP(100M/1Gbps) + 8 PoE(af/at), PoE Max. 120
DatasheetQuote inquiry
Shipping & Delivery
1 Years Warranty
  • Specifications
  • Description
  • Product Details
  • Compare Product Lines

Specifications

Key Features
  • PoE 8-Ports + 100/1000Mbps 2-Slots SFP module
  • IEEE 802.3at PoE 30.8W 8-Ports (Max 120W)
  • Web based management, SNMP
  • Auto MDI/MDI-X
  • IGMP Snooping v1, v2, v3
  • Auto Scan Manager Program
Standards IEEE 802.3 10Base-T Ethernet
IEEE 802.3ad Port trunk with LACP
IEEE 802.1Q VLAN Taqging
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.1p Class of Service
IEEE 802.3at Power over Ethernet
IEEE 802.3ab 1000Base-T
IEEE 802.1w Rapid spanning tree
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.1d Spanning Tree
IEEE 802.3af Power over Ethernet
RJ45 Ports POE 10/100/1000Mbps TP 8-Ports
Auto-Negotiation
Auto MDI-X
Fiber Ports SFP 2-Slots
1000Mbps-SX/LX SFP, 100Mbps-FX SFP, Speed auto detection
LED Indication System : Power
Ports : 10/100/1000Mbps Link/Act, POE In-Use, SFP Link
Back Plane Switch Fabric 20Gbps, 8K MAC Address table, Jumbo Frame(byte) : 9,600
MAC Address 8K Mac Address Table
PoE PoE Power Budget : Max. 120Watt
Number of PD@7Watt / 8Port
Number of PD@15.4Watt / 7Port
Number of PD@30.8Watt / 4Port
Temperature Operating : 0℃ ~ 60℃
Storage : -20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Power Supply 100 ~ 240VAC, 50/60Hz
Dimension 330.5mm (W) x 152.9mm (D) x 44.1mm (H)

Description

Without a separate power line POE Ethernet switch

8 port POE Ethernet switch that provides reliable data and power supply. It provides stable power and supports web-based management, so it can be widely used such as webcam, wireless router, and CCTV.

Stable power supply for 30.8W to each ports Supports up to 120W

The SFC400HP supports 802.3at POE 30.8 Watts, supports 30.8W per ports when 8 Ports supporting a total of 120 Watts of power. Reliable power supply is possible even if you use 8 ports simultaneously.

Quality verification completed 100% Made in Korea

100% Korea manufactured Ethernet switch. We have inspected all the processes from production to delivery, so please use it with confidence.

Build network equipment based on-site environments

Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

Product Details

Construction

Dimensions

Compare Product Lines

  SFC400GM SFC400HP SFC4000HP SFC4000C SFC4000T SFC4100A
TP Port 8 TP
(10/100/1000Mbps)		 8 TP
(10/100/1000Mbps)		 24 TP
(10/100/1000Mbps), 2Combo		 8 TP
(10/100/1000Mbps), 8 Combo		 24 TP
(10/100/1000Mbps)		 4 TP
(10/100/1000Mbps), 4Combo
Fiber Port 2 SFP(100M/1Gbps) 2 SFP(100M/1Gbps) 4 SFP(100M/1Gbps), 2Combo 24 SFP(100M/1Gbps) +
4 SFP+(1G/10Gbps), 8Combo		 4 SFP(100M/1Gbps) 24 SFP(100M/1Gbps) +
4 SFP+(10Gbps), 4Combo
PoE Port - 8 PoE(af/at), PoE Max. 120W 24 PoE(af/at), PoE Max. 380W - - -
Switch Fabric 20Gbps 20Gbps 52Gbps 128Gbps 56Gbps 128Gbps
Throughput 14.88Mpps 14.88Mpps 38.68Mpps 95.23Mpps 41.66Mpps 95.23Mpps
RAM/Flash Memory 128MB/16MB 128MB/16MB 128MB/16MB 256MB/16MB 256MB/16MB 256MB/16MB
MAC Table 8K 8K 8K 8K 16K 32K
Jumbo Frame(byte) 9,600 9,600 9,600 9,216 9,216 4,776
Input Power AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V
No-load/Maximum 3.15W / 7.6W 8.7W / 130W 26W / 441.1W 20W / 38W 7W / 25W 14.7W / 33.7W
Operating Temperature 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 50℃ 0 ~ 50℃ 0 ~ 60℃
Dimension(WxDxH) 217 x 155 x 44 (mm) 330.5 x 152.9 x 44.1 (mm) 439.2 x 300 x 44 (mm) 440 x 280 x 44 (mm) 440 x 208 x 44 (mm) 439.2 x 203 x 44 (mm)
